Code
Description
301A
Manual Fuel Fill with Locking Cap
PY5 Tanks
301B
PY10 thru PY150 Tanks
301C
PY200 and up Tanks
302
Manual Fuel Fill, Threaded 2" NPT connection and a drop tube in tank for Option 301, Manual Fuel Fill with Locking Cap
303
Manual Fuel Fill, Overfill Prevention Features a 2" Cam-and-Groove coupling inlet for fuel truck filling. An internal valve requires 5 psi of incoming fuel pressure to force a float to Close when fuel level rises to 4" from top of the tank.
305-05
Wall Mounting Brackets, Day Tanks 5 gallon day tank
305-10
Wall Mounting Brackets, Day Tanks 10 gallon day tank
305-15
Wall Mounting Brackets, Day Tanks 15 gallon day tank
305-25
Wall Mounting Brackets, Day Tanks 25 gallon day tank
310A
Pipe Stands, Adapter Only 10 through 25 gallon day tanks--Set of 4- Adapters (only) and frame to elevae day tank from floor.
310B
Pipe Stands, Adapter Only 50 through 100 gallon day tanks--Set of 4- Adapters (only) and frame to elevae day tank from floor.
310C
Pipe Stands, Adapter Only 150 gallon day tank--Set of 4- Adapters (only) and frame to elevae day tank from floor.
310D
Pipe Stands, Adapter Only 200 through 275 gallon day tanks--Set of 4- Adapters (only) and frame to elevae day tank from floor.
310E
Pipe Stands, Adapter Only 300 gallon day tank--Set of 4- Adapters (only) and frame to elevae day tank from floor.
310X
Pipe Stands, Adapter Only All other sizes - specify day tank size--Set of 4- Adapters (only) and frame to elevae day tank from floor.
311
Filter Minder
A differential pressure instrument used to monitor and report the working efficiency of a fuel filtering system. If low or high pressure differential is sensed, an alarm circuit is activated. (Installed or ships loose if filter ships loose.)
312A
Priming Tee 1/2" NPT--Priming Tee for easy system startup and pump system re-priming.
312B
Priming Tee 1" NPT--Priming Tee for easy system startup and pump system re-priming.
312C
Priming Tee 1-1/2" NPT--Priming Tee for easy system startup and pump system re-priming.
312D
Priming Tee 2" NPT--Priming Tee for easy system startup and pump system re-priming.
313_PS_05
Compound Gauge, Pressure/Vacuum for Pump Sets
2" Dial, 1/2" Plumbing-Pump Pressure and Vacuum
313_PS_10
2" Dial, 1" Plumbing--Pump Pressure and Vacuum
313_PS_15
2" Dial, 1 1/2" Plumbing--Pump Pressure and Vacuum
313_PS_20
2" Dial, 2" Plumbing--Pump Pressure and Vacuum
313-2
Compound Gauge, Pressure/Vacuum for Day Tanks and Sub-Bases 2" Dial--For inline monitoring pressure normally on the immediate pump outlet (pressure side) or for inline monitoring of vacuum normally on the immediate pump inlet (suction side).
313-4
Compound Gauge, Pressure/Vacuum for Day Tanks and Sub-Bases 4" Dial - Glycerin-filled--For inline monitoring pressure normally on the immediate pump outlet (pressure side) or for inline monitoring of vacuum normally on the immediate pump inlet (suction side).
313P
Gauge, Pressure
For inline monitoring pressure normally on the immediate pump outlet (pressure side)
314-KB1
Fuel Line Strainer, Vertical Strainers
1" NPT, 100 Mesh - Single--In-line strainers are normally located before pumps, meter, and other devices to filter debris from flowing into and damaging equipment. Strainer baskets are removable for cleaning & replacement.
314-KB2
1" NPT, 40 Mesh - Duplex--In-line strainers are normally located before pumps, meter, and other devices to filter debris from flowing into and damaging equipment. Strainer baskets are removable for cleaning & replacement.
314-KC2
1-1/2" NPT, 40 Mesh - Duplex--In-line strainers are normally located before pumps, meter, and other devices to filter debris from flowing into and damaging equipment. Strainer baskets are removable for cleaning & replacement.
314-YA

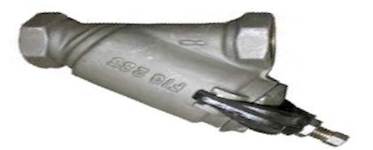

Fuel Line Strainer, Y-Type Strainers
1/2" NPT, 20 Mesh--In-line strainers are normally located before pumps, meter, and other devices to filter debris from flowing into and damaging equipment. Strainer baskets are removable for cleaning & replacement.
314-YB
1" NPT, 20 Mesh--In-line strainers are normally located before pumps, meter, and other devices to filter debris from flowing into and damaging equipment. Strainer baskets are removable for cleaning & replacement.
314-YC
1-1/2" NPT, 40 Mesh--In-line strainers are normally located before pumps, meter, and other devices to filter debris from flowing into and damaging equipment. Strainer baskets are removable for cleaning & replacement.
314-YD
2" NPT, 40 mesh--In-line strainers are normally located before pumps, meter, and other devices to filter debris from flowing into and damaging equipment. Strainer baskets are removable for cleaning & replacement.
315DPX
Fuel Filter - Duplex
Two Option #315 fuel filters connected in parallel with two 3-way valves for isolation or tandem operation. (Ships loose - 18 lbs.)
315SGL
Fuel Filter - Single
1" NPT, 60 Mesh, 40 sq. in. element surface loading area for long life between cleanings. (Ships loose - 6 lbs.)
318DPX
Fuel Filter/Water Separator (Type-F) - Duplex
Two Option #318 fuel filters connected in parallel with two 3-way valves for isolation or tandem operation. (Ships loose - 85 lbs.)
318FLT
Replacement Filter & Gasket
For option #318SGL and #318DPX (Ships loose - 3lbs.)
318SGL
Fuel Filter/Water Separator (Type-F) - Single
A 25 micron filter and housing to effectively remove water and solids from fuel. 1-1/2" NPT, U/L approved up to 50 psi. (Ships loose - 41 lbs.)
319DPX
Fuel Filter/Water Separator (Type-R)
Duplex Manifold Unit - Performance-360 gal/hr. (Ships loose - 26 lbs) A filter and housing to effectively remove water and solids from fuel. U/L approved up to 50 psi. (Available in 2, 10, 25 and 30micron filters - please specify.)
319SGL
Fuel Filter/Water Separator (Type-R) Single Separator Unit - Performance-180 gal/hr. (Ships loose - 10 lbs) A filter and housing to effectively remove water and solids from fuel. U/L approved up to 50 psi. (Available in 2, 10, 25 and 30micron filters - please specify.)
319TRI
Tri-Manifold Unit - Performance-540 gal/hr. (Ships loose - 39 lbs) A filter and housing to effectively remove water and solids from fuel. U/L approved up to 50 psi. (Available in 2, 10, 25 and 30micron filters - please specify.)
320A
Vent Cap- Mushroom
2" NPT (Ships loose-2 lbs)
320B
3" NPT (Ships loose-4 lbs)
320C
4" NPT (Ships loose-5 lbs)
320D
6" NPT (Ships loose-7 lbs)
321A
Vent Cap, Pressure Relief
2" NPT (Ships loose-5 lbs)
321AU
Vent Cap, Weighted 2" NPT, Spring Type UL Listed
321B
3" NPT (Ships loose-10 lbs)
321BU
Vent Cap, Weighted 3" NPT UL Listed
321C
4" NPT (Ships loose-15 lbs)
321CU
Vent Cap, Weighted 4" NPT UL Listed
321D
6" NPT (Ships loose-25 lbs)
321DU
Vent Cap, Weighted 6" NPT UL Listed
322A
Vent Kit, Single Wall
2" NPT (Ships loose-4 lbs) A tank venting system that includes one working vent cap and one emergency pressure relief cap.
322AU
Vent Kit-Weighted, Single Wall
2" NPT, Spring Type UL Listed, A tank venting system that includes one working vent cap and one emergency pressure relief cap.
322B
3" NPT (Ships loose-5 lbs) A tank venting system that includes one working vent cap and one emergency pressure relief cap.
322BU
3" NPT UL Listed, A tank venting system that includes one working vent cap and one emergency pressure relief cap.
322C
4" NPT (Ships loose-7 lbs) A tank venting system that includes one working vent cap and one emergency pressure relief cap.
322CU
4" NPT UL Listed, A tank venting system that includes one working vent cap and one emergency pressure relief cap.
322D
6" NPT (Ships loose-15 lbs) A tank venting system that includes one working vent cap and one emergency pressure relief cap.
322DU
6" NPT UL Listed, A tank venting system that includes one working vent cap and one emergency pressure relief cap.
323A
Vent Kit, Double Wall Pressure Spring Loaded
2" NPT (Ships loose-10 lbs) A tank venting system that includes two working vent caps and two emergency pressure relief caps.
323AU
Vent Kit-Weighted, Double Wall
2" NPT Spring Type, UL Listed. A tank venting system that includes two working vent caps and two emergency pressure relief caps.
323B
3" NPT (Ships loose-19 lbs) A tank venting system that includes two working vent caps and two emergency pressure relief caps.
323BU
3" NPT , UL Listed, A tank venting system that includes two working vent caps and two emergency pressure relief caps.
323C
4" NPT (Ships loose-27 lbs), A tank venting system that includes two working vent caps and two emergency pressure relief caps.
323CU
4" NPT , UL Listed, A tank venting system that includes two working vent caps and two emergency pressure relief caps.
323D
6" NPT (Ships loose), A tank venting system that includes two working vent caps and two emergency pressure relief caps.
323DU
6" NPT, UL Listed, A tank venting system that includes two working vent caps and two emergency pressure relief caps.
324
Vent Overflow Detector
A sensor to detect any fuel overfilling into the vent. A red alarm light on the tank control panel is activated and pump motor(s) are shut down (15 amp).
326
Sight Glass
Glass tube with two hand valves, guard included.
330A
Extra Pipe Connection/Ports - Standard Sizes 1/2" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330B
Extra Pipe Connection/Ports - Standard Sizes 1" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330C
Extra Pipe Connection/Ports - Standard Sizes 1- 1/2" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330D
Extra Pipe Connection/Ports - Standard Sizes 2" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330E
Extra Pipe Connection/Ports - Standard Sizes 3" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330F
Extra Pipe Connection/Ports - Standard Sizes 4" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330G
Extra Pipe Connection/Ports - Standard Sizes 6" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330H
Extra Pipe Connection/Ports - Additional Sizes 1/8" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330J
Extra Pipe Connection/Ports - Additional Sizes 1/4" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330K
Extra Pipe Connection/Ports - Additional Sizes 3/8" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330L
Extra Pipe Connection/Ports - Additional Sizes 3/4" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330M
Extra Pipe Connection/Ports - Additional Sizes 1- 1/4" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330N
Extra Pipe Connection/Ports - Additional Sizes 2- 1/2" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
330P
Extra Pipe Connection/Ports - Additional Sizes 5" NPT--Hole and NPT weld flange for customer specified additional plumbing and control port.
333A
Extra Fitting for Double Wall Pipe-Through Double Wall
1" NPT
333B
2" NPT
333C
3" NPT
333D
1/2" NPT
333E
1-1/2" NPT
333K
3/8" NPT
334-1
Day Tank Cover-NEMA-1 Enclosure for Day Tanks (Single) Single pump, motor and control components. (Note: A Single Pump/Motor cover is standard equipment for Standard Day Tank, Trim Day Tank and Manual Day Tank with electrical components.
334-2
Day Tank Cover-NEMA-1 Enclosure for Day Tanks (Duplex) Two pumps, motors and control components. This cover is standard equipment for duplex supply pumps and motors with Options 427, 427A or 427B.
334-3
Day Tank Cover-NEMA-1 Enclosure for Day Tanks (Triplex) Three pumps, motors and control components.
334-4
Day Tank Cover-NEMA-1 Enclosure for Day Tanks (Quad) Four pumps, motors and control components.
335-1
Day Tank Cover - Weatherproof Single Pump/Motor--A NEMA 3R rated enclosure to provide protection against normal weather elements. The control panel viewing area is covered with sealed plexi glass and all openings are piped-through. Inside, a pan provides protection from flooding.
335-2
Day Tank Cover - Weatherproof Duplex Pumps/Motors--A NEMA 3R rated enclosure to provide protection against normal weather elements. The control panel viewing area is covered with sealed plexi glass and all openings are piped-through. Inside, a pan provides protection from flooding.
335-3
Day Tank Cover - Weatherproof Triplex Pumps/Motors--A NEMA 3R rated enclosure to provide protection against normal weather elements. The control panel viewing area is covered with sealed plexi glass and all openings are piped-through. Inside, a pan provides protection from flooding.
335-4
Day Tank Cover - Weatherproof Quad Pumps/Motors--A NEMA 3R rated enclosure to provide protection against normal weather elements. The control panel viewing area is covered with sealed plexi glass and all openings are piped-through. Inside, a pan provides protection from flooding.
335RB/01
Steel Weatherproofing of Rupture Basin
10-25 Gallon Tank--A NEMA 3R rated enclosure of the rupture basin containment area to provide outdoor protection against normal weather elements. A viewing window is covered with sealed plexi glass and all openings are piped-through.
335RB/02
50-75 Gallon Tank--A NEMA 3R rated enclosure of the rupture basin containment area to provide outdoor protection against normal weather elements. A viewing window is covered with sealed plexi glass and all openings are piped-through.
335RB/03
100-150 Gallon Tank--A NEMA 3R rated enclosure of the rupture basin containment area to provide outdoor protection against normal weather elements. A viewing window is covered with sealed plexi glass and all openings are piped-through.
335RB/04
200-300 Gallon Tank--A NEMA 3R rated enclosure of the rupture basin containment area to provide outdoor protection against normal weather elements. A viewing window is covered with sealed plexi glass and all openings are piped-through.
335RB/05
400-600 Gallon Tank--A NEMA 3R rated enclosure of the rupture basin containment area to provide outdoor protection against normal weather elements. A viewing window is covered with sealed plexi glass and all openings are piped-through.
335RB/06
700-800 Gallon Tank--A NEMA 3R rated enclosure of the rupture basin containment area to provide outdoor protection against normal weather elements. A viewing window is covered with sealed plexi glass and all openings are piped-through.
335RB/07
900-1000 Gallon Tank--A NEMA 3R rated enclosure of the rupture basin containment area to provide outdoor protection against normal weather elements. A viewing window is covered with sealed plexi glass and all openings are piped-through.
338A
Enclosure - Pump Set
PYPS2100, NEMA-1, Single Pump,A NEMA-1 or NEMA-3R enclosure featuring: heavy galvannealed steel; a lockable door with a continuous hinge (may be complimented with an optional door interlock system - Option 339); and protected vent openings for adequate ventilation.
338B
PYPS2200, NEMA-1, Duplex Pump--A NEMA-1 or NEMA-3R enclosure featuring: heavy galvannealed steel; a lockable door with a continuous hinge (may be complimented with an optional door interlock system - Option 339); and protected vent openings for adequate ventilation.
338C
PYPS2100, NEMA-3R, Single Pump--A NEMA-1 or NEMA-3R enclosure featuring: heavy galvannealed steel; a lockable door with a continuous hinge (may be complimented with an optional door interlock system - Option 339); and protected vent openings for adequate ventilation.
338D
PYPS2200, NEMA-3R, Duplex Pump--A NEMA-1 or NEMA-3R enclosure featuring: heavy galvannealed steel; a lockable door with a continuous hinge (may be complimented with an optional door interlock system - Option 339); and protected vent openings for adequate ventilation.
338E
PYPS1100, NEMA-1, Single Pump--A NEMA-1 or NEMA-3R enclosure featuring: heavy galvannealed steel; a lockable door with a continuous hinge (may be complimented with an optional door interlock system - Option 339); and protected vent openings for adequate ventilation.
338F
PYPS1200, NEMA-1, Duplex Pump--A NEMA-1 or NEMA-3R enclosure featuring: heavy galvannealed steel; a lockable door with a continuous hinge (may be complimented with an optional door interlock system - Option 339); and protected vent openings for adequate ventilation.
338G
PYPS1100, NEMA-3R, Single Pump--A NEMA-1 or NEMA-3R enclosure featuring: heavy galvannealed steel; a lockable door with a continuous hinge (may be complimented with an optional door interlock system - Option 339); and protected vent openings for adequate ventilation.
338H
PYPS1200, NEMA-3R, Duplex Pump--A NEMA-1 or NEMA-3R enclosure featuring: heavy galvannealed steel; a lockable door with a continuous hinge (may be complimented with an optional door interlock system - Option 339); and protected vent openings for adequate ventilation.
338X
PYPS3000, ALL, A NEMA-1 or NEMA-3R enclosure featuring: heavy galvannealed steel; a lockable door with a continuous hinge (may be complimented with an optional door interlock system - Option 339); and protected vent openings for adequate ventilation.
339-1-10
Door Interlock with Circuit Breaker Single pole, 1ph, A/C - 10 Amp.--Used to require power to pump set to be shut down before door may be opened. Circuit breaker sized to motor.
339-1-15
Door Interlock with Circuit Breaker Single pole, 1ph, A/C - 15 Amp.--Used to require power to pump set to be shut down before door may be opened. Circuit breaker sized to motor.
339-1-20
Door Interlock with Circuit Breaker Single pole, 1ph, A/C - 20 Amp.--Used to require power to pump set to be shut down before door may be opened. Circuit breaker sized to motor.
339-1-30
Door Interlock with Circuit Breaker Single pole, 1ph, A/C - 30 Amp.--Used to require power to pump set to be shut down before door may be opened. Circuit breaker sized to motor.
339-2-15
Door Interlock with Circuit Breaker Double pole, 1ph, A/C - 10 Amp.--Used to require power to pump set to be shut down before door may be opened. Circuit breaker sized to motor.
339-3-15A
Door Interlock with Circuit Breaker 3-Phase, A/C, 230vac - 15 Amp.-Used to require power to pump set to be shut down before door may be opened. Circuit breaker sized to motor.
339-3-15B
Door Interlock with Circuit Breaker 3-Phase, A/C, 460vac - 15 Amp.--Used to require power to pump set to be shut down before door may be opened. Circuit breaker sized to motor.
339-DC
Door Interlock with Circuit Breaker All D/C motors - Up to 30 Amp.--Used to require power to pump set to be shut down before door may be opened. Circuit breaker sized to motor.
340A
Drain Bottom Petcock Valve 1/2"
340B
Drain Bottom Petcock Valve 1"
340D
Drain Bottom Petcock Valve 2"
340K
Drain Bottom Petcock Valve 3/8"
340L
Drain Bottom Petcock Valve 3/4"
341DWA
Drain - Inner Tank 1/2" Double Wall tank configuration--The plumbing necessary to drain the inner tank through to the outside of a secondary containment area.
341DWB
Drain - Inner Tank 1" Double Wall tank configuration--The plumbing necessary to drain the inner tank through to the outside of a secondary containment area.
341RBA
Drain - Inner Tank 1/2" Rupture Basin secondary containment--The plumbing necessary to drain the inner tank through to the outside of a secondary containment area.
341RBB
Drain - Inner Tank 1" Rupture Basin secondary containment--The plumbing necessary to drain the inner tank through to the outside of a secondary containment area.
341RBD
Drain- Inner Tank 2" Rupture Basin secondary containment--The plumbing necessary to drain the inner tank through to the outside of a secondary containment area.
342-01
Drain- Bottom Day Tank - Single Wall, 3/8" NPT
342-02
Drain- Bottom Day Tank - Single Wall, 1/2" NPT
342-03
Drain- Bottom Day Tank - Single Wall, 1" NPT
343
Siphon Drain Assembly The plumbing to siphon-drain most fuel from a day tank using a 2" tank top connection. Includes a quarter-turn valve.
345
Drain, Nominal 10 GPM Single Wall - Includes a lockable quarter-turn manual valve.
345DW
Drain, Nominal 10 GPM Double Wall - Includes a lockable quarter-turn manual valve.
345RB
Drain, Nominal 10 GPM Rupture Basin - Includes a lockable quarter-turn manual valve.
350
Drain, Emergency for Remote Actuation Nominal 10 GPM Single Wall - A "quick" drain at nominal 10gpm located at the bottom of all tanks. When a customer supplied signal is received opening a solenoid valve, the fuel is gravity drained from the day tank. A light on the control panel illuminates and pump-motor disconnects.
350DW
Drain, Emergency for Remote Actuation Double Wall - A "quick" drain at nominal 10gpm located at the bottom of all tanks. When a customer supplied signal is received opening a solenoid valve, the fuel is gravity drained from the day tank. A light on the control panel illuminates and pump-motor disconnects.
350RB
Drain, Emergency for Remote Actuation Rupture Basin - A "quick" drain at nominal 10gpm located at the bottom of all tanks. When a customer supplied signal is received opening a solenoid valve, the fuel is gravity drained from the day tank. A light on the control panel illuminates and pump-motor disconnects.
352SL
Oil Cooler
Standard Oil Cooler Motor (Ships loose)
352WP
Weatherproof, Tank Mounted (TENV Motor)
352WPSL
Weatherproof, (TENV Motor) (Ship Loose)
353

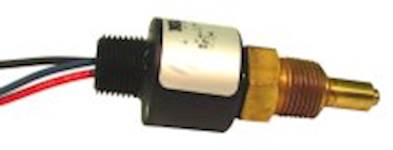

Temperature Switch
To automatically control on/off of oil cooler motor.
354
High Temperature Return Thermostatic Valve
1" NPT (Specify Temperature)
354-1/2-90
Valve- High Temperature Return Thermostatic 90°, 1/2"
354-1-160
Valve- High Temperature Return Thermostatic 160°, 1"
354-1-90
Valve- High Temperature Return Thermostatic 90°, 1"
355A
Check Valve
Pump Intake, 1/2" (up to 6 gpm pumps)
355B
Pump Intake, 1" (up to 25 gpm pumps)
355C
Pump Intake, 1- 1/2" (up to 65 gpm pumps)
360A-120
Solenoid Valve, Normally Closed (N/C)
120vac Systems - 1/2" (up to 4 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360A-230
230vac Systems - 1/2" (up to 4 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360A-D12
12vdc Systems - 1/2" (up to 4 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360A-D24
24vdc Systems - 1/2" (up to 4 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360B-120
120vac Systems - 1" (up to 10 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360B-230
230vac Systems - 1" (up to 10 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360B-D12
12vdc Systems - 1" (up to 10 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360B-D24
24vdc Systems - 1" (up to 10 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360C-120
120vac Systems - 1- 1/2" (up to 23 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360C-230
230vac Systems - 1- 1/2" (up to 23 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360C-D12
12vdc Systems - 1- 1/2" (up to 23 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360C-D24
24vdc Systems - 1- 1/2" (up to 23 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360D-120
120vac Systems - 2" (up to 40 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360D-230
230vac Systems - 2" (up to 40 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360D-D12
12vdc Systems - 2" (up to 40 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
360D-D24
24vdc Systems - 2" (up to 40 gpm pumps). Installed on tank inlet to prevent tank flooding and for other special applications.
361D-120
Solenoid Valve, 2", Normally Open (N/O)
120vac Systems. For Remote Fill Panel (options 226 and 230) and other applications.
361D-230
230vac Systems. For Remote Fill Panel (options 226 and 230) and other applications.
361D-D12
12vdc Systems. For Remote Fill Panel (options 226 and 230) and other applications.
361D-D24
24vdc Systems. For Remote Fill Panel (options 226 and 230) and other applications.
362A-120
Solenoid Valve, Normally Open (N/0)
120vac Systems - 1/2" (up to 4 gpm pumps)
362A-230
230vac Systems - 1/2" (up to 4 gpm pumps)
362A-D12
12vdc Systems - 1/2" (up to 4 gpm pumps)
362A-D24
24vdc Systems - 1/2" (up to 4 gpm pumps)
362B-120
120vac Systems - 1" (up to 10 gpm pumps)
362B-230
230vac Systems - 1" (up to 10 gpm pumps)
362B-D12
12vdc Systems - 1" (up to 10 gpm pumps)
362B-D24
24vdc Systems - 1" (up to 10 gpm pumps)
362C-120
120vac Systems - 1- 1/2" (up to 23 gpm pumps)
362C-230
230vac Systems - 1-1/2" (up to 23 gpm pumps)
362C-D12
12vdc Systems - 1- 1/2" (up to 23 gpm pumps)
362C-D24
24vdc Systems - 1- 1/2" (up to 23 gpm pumps)
362D-120
120vac Systems - 2" (up to 40 gpm pumps)
362D-230
230vac Systems - 2" (up to 40 gpm pumps)
362D-D12
12vdc Systems - 2" (up to 40 gpm pumps)
362D-D24
24vdc Systems - 2" (up to 40 gpm pumps)
364A-120
Solenoid Valve with Manual Override, Normally Closed (N/C)
364A-230
364A-D12
364A-D24
364B-120
364B-230
364B-D12
364B-D24
364C-120
364C-230
230vac Systems - 1- 1/2" (up to 23 gpm pumps)
364C-D12
364C-D24
364D-120
364D-230
364D-D12
364D-D24
367ALS
Auxiliary Limit Switch for all #367 Motorized Ball Valves
367D-120
Motorized Ball Valve
120vac Systems - 2" NPT, Mortorized Ball Valve for remote fill panel (options 226 and 230 and other applications.
367D-230
230vac Systems - 2" NPT. Mortorized Ball Valve for remote fill panel (options 226 and 230 and other applications.
367D-D12
12vdc Systems - 2" NPT. Mortorized Ball Valve for remote fill panel (options 226 and 230 and other applications.
367D-D24
24vdc Systems - 2" NPT. Mortorized Ball Valve for remote fill panel (options 226 and 230 and other applications.
367E-120
120vac Systems - 3" NPT. Mortorized Ball Valve for remote fill panel (options 226 and 230 and other applications.
367E-230
230vac Systems - 3" NPT. Mortorized Ball Valve for remote fill panel (options 226 and 230 and other applications.
367E-D12
12vdc Systems - 3" NPT. Mortorized Ball Valve for remote fill panel (options 226 and 230 and other applications.
367E-D24
24vdc Systems - 3" NPT. Mortorized Ball Valve for remote fill panel (options 226 and 230 and other applications.
369A
Manual Ball Valve, Quarter Turn (Pump Sets)
1/2" NPT, Installed on pump sets for component isolation
369B
1" NPT. Installed on pump sets for component isolation
369C
1- 1/2" NPT. Installed on pump sets for component isolation
369D
2" NPT. Installed on pump sets for component isolation
369K
3/8" NPT. Installed on pump sets for component isolation
370A
Manual Ball Valve, Quarter Turn (Gravity-Fed Tanks)
1/2" NPT (Ships loose - 2 lbs). Manual cut off valve installed in fuel inlet that is primarily used for gravity-fed day tanks
370B
1" NPT (Ships loose - 3 lbs). Manual cut off valve installed in fuel inlet that is primarily used for gravity-fed day tanks
370C
1- 1/2" NPT (Ships loose - 6 lbs). Manual cut off valve installed in fuel inlet that is primarily used for gravity-fed day tanks
370D
2" NPT (Ships loose - 14 lbs). Manual cut off valve installed in fuel inlet that is primarily used for gravity-fed day tanks
370K
Manual Ball Valve, Quarter-Turn (Gravity Fed Tanks)
3/8" NPT (Ship Loose 2 Lbs.)- Manual cut off valve installed in fuel inlet that is primarily used for gravity-fed day tanks
371A
Flow Meter
.3 to 3 GPM (Ships loose - 4lbs). An in-line meter to measure amount of fuel flow from main storage tank to day tank, 1" NPT.
371B
.3 to 30 GPM (Ships loose - 5 lbs). Manual cut off valve installed in fuel inlet that is primarily used for gravity-fed day tanks
372
Flow Switch
An in-line switch to detect "no fuel" in fuel line. Several events are possible, including pump and motor shut down and/or sounding an alarm. Closing the switch can be delayed, see option #373 below. (10 watts)
372-1.5"
Fuel Flow Switch Detects No Fuel in Line, 1.5"
372-PS-10
Fuel Flow Switch For Pump Set- Detects No Fuel in Line, 10 Watts- 1"
372-PS-15
Fuel Flow Switch For Pump Set- Detects No Fuel in Line, 10 Watts- 1-1/2"
372-PS-5
Fuel Flow Switch For Pump Set- Detects No Fuel in Line, 10 Watts- 1/2"
372R
Terminals, Socket, Relay & Wiring "For remote signal, add -
373
Time Delay Relay
For option #372 with reset pump and motor shut down (10 amp)
374
Fuse-Link Valve For fire safety - automatically closes fuel line when ambient temperature reaches 165°F - 1" NPT
375
Foot Valve For installation in a main storage tank to prevent loss of pump prime, 1" NPT (Ships loose - 6 lbs)
376
Foot Valve Installed in a day tank to prevent loss of return pump prime and engine suction, 1" NPT
379_PS_05
In-Line Pressure Relief Bypass Valve
For Pump Sets-Inline Bypass-50psi, 1" (For 1/2"), Re-routes fuel when line reaches the defined pressure.
379_PS_10
For Pump Sets-Inline Bypass-50psi, 1" (For 1"), Re-routes fuel when line reaches the defined pressure.
379_PS_15
For Pump Sets-Inline Bypass-50psi, For 1-1/2", Re-routes fuel when line reaches the defined pressure.
379A
In-Line Pressure Relief Bypass Valve 1" @ 50 psi - 20 gpm max, Re-routes fuel when line reaches the defined pressure.
379B
In-Line Pressure Relief Bypass Valve 1 1/2" @ 50 psi - 40 gpm max, Re-routes fuel when line reaches the defined pressure.
379C
In-Line Pressure Relief Bypass Valve 2" @ 50 psi - 120 gpm max, Re-routes fuel when line reaches the defined pressure.
379D
In-Line Pressure Relief Bypass Valve 2" @ 75 psi - 120 gpm max, Re-routes fuel when line reaches the defined pressure.
380
Pressure Relief Valve Installed on motor driven pump. Internal pressure relief.
380-02
Pressure Relief Valve Internal to 2 gpm Pump
380-04
Pressure Relief Valve Internal to 4 gpm Pump
380-08
Pressure Relief Valve Internal to 8 gpm Pump
380-10
Pressure Relief Valve Internal to 10 gpm Pump
380-23
Pressure Relief Valve Internal to 23 gpm Pump
381
Flame Arrestor
To protect from fire or explosion from exterior ignition source.
385/01
Rupture Basin
150% Tank Capacity, , 5-10 gallon day tank, Open top secondary containment tank, U/L Listed.
385/02
150% Tank Capacity, , 15 gallon day tank, Open top secondary containment tank, U/L Listed.
385/03
150% Tank Capacity, , 25 gallon day tank, Open top secondary containment tank, U/L Listed.
385/04
150% Tank Capacity, , 50 gallon day tank, Open top secondary containment tank, U/L Listed.
385/05
150% Tank Capacity, , 60 gallon day tank, Open top secondary containment tank, U/L Listed.
385/06
150% Tank Capacity, , 75 gallon day tank, Open top secondary containment tank, U/L Listed.
385/07
150% Tank Capacity, , 100 gallon day tank, Open top secondary containment tank, U/L Listed.
385/08
150% Tank Capacity, , 150 gallon day tank, Open top secondary containment tank, U/L Listed.
385/09
150% Tank Capacity, , 200 gallon day tank, Open top secondary containment tank, U/L Listed.
385/10
150% Tank Capacity, , 275 gallon day tank, Open top secondary containment tank, U/L Listed.
385/11
150% Tank Capacity, 300 gallon day tank, Open top secondary containment tank, U/L Listed.
385/12
150% Tank Capacity, , 400 gallon day tank, Open top secondary containment tank, U/L Listed.
385/13
150% Tank Capacity, , 500 gallon day tank, Open top secondary containment tank, U/L Listed.
385/14
150% Tank Capacity, , 600 gallon day tank, Open top secondary containment tank, U/L Listed.
385/15
150% Tank Capacity, , 700 gallon day tank, Open top secondary containment tank, U/L Listed.
385/16
150% Tank Capacity, , 800 gallon day tank, Open top secondary containment tank, U/L Listed.
385/17
150% Tank Capacity, 900 gallon day tank, Open top secondary containment tank, U/L Listed.
385/18
150% Tank Capacity, 1000 gallon day tank, Open top secondary containment tank, U/L Listed.
385DW
For Double Wall Tanks
385DW/01
200% Tank Capacity, 5-10 gallon day Double Wall tank Open top secondary containment tank, U/L Listed
385DW/02
200% Tank Capacity, 15 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/03
200% Tank Capacity, 25 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/04
200% Tank Capacity, 50 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/05
200% Tank Capacity, 60 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/06
200% Tank Capacity, 75 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/07
200% Tank Capacity, 100 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/08
200% Tank Capacity, 150 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/09
200% Tank Capacity, 200 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/10
200% Tank Capacity, 275 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/11
200% Tank Capacity, 300 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/12
200% Tank Capacity, 400 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/13
200% Tank Capacity, 500 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/14
200% Tank Capacity, 600 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/15
200% Tank Capacity, 700 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/16
200% Tank Capacity, 800 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/17
200% Tank Capacity, 900 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385DW/18
200% Tank Capacity, 1000 gallon day Double Wall tank, Open top secondary containment tank, U/L Listed
385TRIM
Rupture Basin For a 150 gallon Trim Tank
386/01
200% Tank Capacity, 10 gallon day tank,
386/02
200% Tank Capacity, 15 gallon day tank,
386/03
200% Tank Capacity, 25 gallon day tank,
386/04
200% Tank Capacity, 50 gallon day tank,
386/05
200% Tank Capacity, 60 gallon day tank,
386/06
200% Tank Capacity, 75 gallon day tank,
386/07
200% Tank Capacity, 100 gallon day tank,
386/08
200% Tank Capacity, 150 gallon day tank,
386/09
200% Tank Capacity, 200 gallon day tank,
386/10
200% Tank Capacity, 275 gallon day tank,
386/11
200% Tank Capacity, 300 gallon day tank,
386/12
200% Tank Capacity, 400 gallon day tank,
386/13
200% Tank Capacity, 500 gallon day tank,
386/14
200% Tank Capacity, 600 gallon day tank,
386/15
200% Tank Capacity, 700 gallon day tank,
386/16
200% Tank Capacity, 800 gallon day tank,
386/17
200% Tank Capacity, 900 gallon day tank,
386/18
200% Tank Capacity, 1000 gallon day tank,
395
Leak Detector for Rupture Basins of Tanks with Pump and Motor A sensor within the Rupture Basin containment area that upon detection of a leak will turn on a red alarm light on control panel and will shut down pump motor. Includes dry terminal contacts for connection of customer supplied device up to 15 amp.
395M
Leak Detector for Rupture Basins of Manual or Sub-Base Tanks A sensor within the Rupture Basin containment area that upon detection of a leak will turn on a red alarm light on control panel. Includes dry terminal contacts for connection of customer supplied device up to 15 amp.
397-12A
Remote Pumping Unit (RPU)
Single Motor System, 24" wide x 12" deep, up to 8 gpm,
397-12B
Duplex Remote Pumping Unit Base (RPU) and Cover
Duplex Pump/Motor System, 24" wide x 12" deep, up to 8 gpm, NEMA 3R
397-12C
Remote Pumping Unit (RPU) NEMA 3R- 24W x 12D Triplex Pump/Motor System, 24" wide x 12" deep, up to 8 gpm
397-12D
Remote Pumping Unit (RPU) NEMA 3R- 24W x 12D Quad Pump/Motor System, 24" wide x 12" deep, up to 8 gpm
397-18A
Single Remote Pumping Unit Base (RPU) and Cover
Single Pump/Motor System, 24" wide x 18" deep, up to 23 gpm, NEMA 3R
397-18B
Duplex Pump/Motor System, 24" wide x 18" deep, up to 23 gpm NEMA 3R
397-18C
Remote Pumping Unit (RPU) NEMA 3R- 24W x 12D Triplex Pump/Motor System, 24" wide x 18" deep, up to 23 gpm
397-18D
Remote Pumping Unit (RPU) NEMA 3R- 24W x 12D Quad Pump/Motor System, 24" wide x 18" deep, up to 23 gpm
397-24A
Single Pump/Motor System, 24" wide x 24" deep, up to 40 gpm, NEMA 3R
397-24B
Duplex Remote Pumping Unit Base(RPU) and Cover
Duplex Pump/Motor System, 24" wide x 24" deep, up to 40 gpm NEMA 3R
397-24C
Remote Pumping Unit (RPU) NEMA 3R- 24W x 12D Triplex Pump/Motor System, 24" wide x 24" deep, up to 40 gpm
397-24D
Remote Pumping Unit (RPU) NEMA 3R- 24W x 12D Quad Pump/Motor System, 24" wide x 24" deep, up to 40 gpm
398
Remote Reading Level Gauge
Fuel Level- For Tanks UP to 48" Deep- For remote monitoring of fuel level up to 300' maximum distance - 12 and 24vdc
399-1-05
Reverse Flow Controls and Piping 1/2" Plumbing
399-1-10
Reverse Flow Controls and Piping 1" Plumbing
399-1-15
Reverse Flow Controls and Piping 1- 1/2" Plumbing
399-1-20
Reverse Flow Controls and Piping 2" Plumbing
399-2-05
Reverse Flow Controls and Piping Duplexed- 1/2" Plumbing
399-2-10
Reverse Flow Controls and Piping Duplexed- 1" Plumbing
399-2-15
Reverse Flow Controls and Piping Duplexed- 1-1/2" Plumbing
399-2-20
Reverse Flow Controls and Piping Duplexed- 2" Plumbing
399A-05
Reverse Flow Controls and Piping Duplexed- (Auto Switching) 1/2" Plumbing
399A-10
Reverse Flow Controls and Piping Duplexed- (Auto Switching) 1" Plumbing
399A-15
Reverse Flow Controls and Piping Duplexed- (Auto Switching) 1-1/2" Plumbing
399A-20
Reverse Flow Controls and Piping Duplexed- (Auto Switching) 2" Plumbing
399B-05
Reverse Flow Controls and Piping Duplexed- (Manual Switching) 1/2" Plumbing
399B-10
Reverse Flow Controls and Piping Duplexed- (Manual Switching) 1" Plumbing
399B-15
Reverse Flow Controls and Piping Duplexed- (Manual Switching) 1-1/2" Plumbing
399B-20
Reverse Flow Controls and Piping Duplexed- (Manual Switching) 2" Plumbing
400
Pump, Bronze Rotary
8 gpm, requires at least 1/2 HP motor (Replaces Pryco's standard 2 gpm pump)
400 REV
Pump- Bronze Rotary
8 gpm Reverse Flow
400 REV DPX
8 gpm Reverse Flow- For Duplex Reverse Flow
400 SUP DPX
8 gpm Reverse Flow- For Duplex Supply
401
4 gpm, requires at least 1/3 HP motor (Replaces Pryco's standard 2 gpm pump)
401 REV
Pump- Bronze Rotary Reverse Flow
4 gpm Reverse Flow
401 REV DPX
Pump- Bronze Rotary Duplex Reverse Flow
4 gpm Reverse Flow- For Duplex Reverse Flow
401 SUP DPX
Pump- Bronze Rotary Reverse Flow for Duplex Supply
4 gpm Reverse Flow- For Duplex Supply
402
2 gpm, requires at least 1/3 HP motor (Pryco's Standard Pump)
402 REV
2 gpm Reverse Flow
402 REV DPX
2 gpm Reverse Flow- For Duplex Reverse Flow
402 SUP DPX
Pump- Bronze Rotary Duplex Supply Reverse Flow
2 gpm Reverse Flow- For Duplex Supply
403
10 gpm, requires at least 3/4 HP motor (Replaces Pryco's standard 2 gpm pump)
403 REV
10 gpm Reverse Flow
403 REV DPX
10 gpm Reverse Flow- For Duplex Reverse Flow
403 SUP DPX
Pump- Bronze Rotary for Duplex Supply Reverse Flow
10 gpm Reverse Flow- For Duplex Supply
404
23 gpm, requires at least 1 HP motor (Replaces Pryco's standard 2 gpm pump)
404 REV
23 gpm Reverse Flow
404 REV DPX
23 gpm Reverse Flow- For Duplex Reverse Flow
404 SUP DPX
Pump- Bronze Rotary Duplex Supply Reverse
23 gpm Reverse Flow- For Duplex Supply
405
40 gpm pump-Supply
405 REV
40 gpm Reverse Flow
405 REV DPX
40 gpm Reverse Flow- For Duplex Reverse Flow
405 SUP DPX
40 gpm Reverse Flow- For Duplex Supply
410
Motor, D/C 1/4 HP Motor, 12 volt
411
Motor, D/C 1/4 HP Motor, 24vdc
414
Motor, 1 Phase
1/3 HP, 115vac, 60HZ
424
Motor, 1 Phase, TEFC 1/3 HP , 115vac, 60HZ
424REV
Motor- 1 Phase, TEFC 1/3 HP, 115vac, 60 HZ
425
Motor, 1 Phase, Explosion Proof 1/3 HP, 115vac, 60HZ
425REV
Motor- 1 Phase, Explosion Proof 1/3 HP, 115vac, 60 HZ
426
Motor, 1 Phase 1/3 HP, 110vac, 50HZ
426REV
Motor, 1 Phase 1/3 HP, 115vac, 50 HZ
427-05
Duplex Pump, Motor, Controls & Piping
1/2" Piping
427-10
Duplex Pump & Motor 1" Piping
427-15
Duplex Pump, Motor, Controls & Piping 1-1/2" Piping
427-20
Duplex Pump, Motor, Controls & Piping 2" Piping
427A-05
Duplex Pump, Motor, Controls & Piping Auto Transfer Switch, 1/2" Piping
427A-10
Duplex Pump, Motor, Controls & Piping Auto Transfer Switch, 1" Piping
427A-15
Duplex Pump, Motor, Controls & Piping Auto Transfer Switch, 1- 1/2" Piping
427A-20
Duplex Pump, Motor, Controls & Piping Auto Transfer Switch, 2" Piping
427A-CTLONLY
Controls Only, Less Pump, Motor and F/S Auto Transfer Switch & Pump H.O.A. Switch
427B-05
Duplex Pump, Motor, Controls & Piping Manual Transfer Switch, 1/2" Piping
427B-10
Duplex Pump, Motor, Controls & Piping Manual Transfer Switch, 1" Piping
427B-15
Duplex Pump, Motor, Controls & Piping Manual Transfer Switch, 1-1/2" Piping
427B-20
Duplex Pump, Motor, Controls & Piping Manual Transfer Switch, 2" Piping
428
Motor, 1 Phase 1/3 HP, 230VAC, 1 PH, 50hz
428REV
Motor, 1 Phase 1/3 HP, 240vac, 60 HZ
429
Motor, 1 Phase 1/3 HP, 230VAC, 1 PH, 60hz
429REV
Motor, 1 Phase 1/3 HP, 240vac, 50 HZ
433A
Motor- 3 Phase 1/3 HP, 230 volt, 60HZ
433B
Motor- 3 Phase 1/3 HP, 460 volt, 60HZ
433REVA
433REVB
434
Motor, 1 Phase, Explosion Proof 3/4 HP, 115vac, 60HZ
434REV
435A
Motor, 3 Phase, Explosion Proof 3/4 HP, 230 vac, 60HZ
435B
Motor, 3 Phase, Explosion Proof 3/4 HP, 460 vac, 60HZ
435REVA
435REVB
436
Motor, 1 Phase, Explosion Proof 1 HP, 115 vac, 60HZ
436REV
437A
Motor, 1 Phase, Explosion Proof 1hp, 230 VAC,60 hz
437B
Motor, 1 Phase, Explosion Proof 1 hp, 460 VAC, 60hz
437REVA
Motor, 1 Phase, Explosion Proof 1 hp, 230 VAC, 60hz
437REVB
440
Motor, DC 1/2 HP, (24vdc)
440REV
Motor, DC 1/2 HP, (12 vdc)
441
Motor, DC 1/2 HP, (12vdc)
441REV
Motor, DC 1/2 HP, (24 vdc)
442A
Motor Starter 3 Phase, W/Control Transformer (1/3HP/230vac)
442B
Motor Starter 3 Phase, W/Control Transformer (1/2HP/230vac)
442C
Motor Starter 3 Phase, W/Control Transformer (3/4HP/230vac)
442D
Motor Starter 3 Phase, W/Control Transformer (1HP/230vac)
442E
Motor Starter 3 Phase, W/Control Transformer (1/3HP/460vac)
442F
Motor Starter 3 Phase, W/Control Transformer (3/4HP/460vac)
442G
Motor Starter 3 Phase, W/Control Transformer (1HP/460vac)
442H
Motor Starter 3 Phase, W/Control Transformer (1.5HP/230vac)
442J
Motor Starter 3 Phase, W/Control Transformer (1.5HP/460vac)
442K
Motor Starter 3 Phase, W/Control Transformer (2HP/460/230vac)
442L
Motor Starter 3 Phase, W/Control Transformer (5HP/460vac)
442M
Motor Starter 3 Phase, W/Control Transformer (1.5HP/6000vac)
442N
443A
Motor Starter 1 Phase, (1/3HP/115vac, 8 amp)
443B
Motor Starter 1 Phase, (1/2HP/115vac, 11.5 amp)
443C
Motor Starter 1 Phase, (3/4HP/115vac)
443D
Motor Starter
1 Phase (1HP/115vac)
443E
1 Phase (1/3HP/230vac)
443F
1 Phase (1/2HP/230vac)
443G
1 Phase (1.5-2HP/115vac)
443H
1 Phase (3/4HP/230vac)
443K
1 Phase (1.5HP/220vac, 50hz)
443L
1 Phase (3/4HP/220vac, 60hz)
443M
1 Phase (5HP/208/230vac)
443N
1 Phase (1/3HP/200vac, 60hz) Requires P/N 2927)
444
Motor- 1 Phase, ODP
1/2 HP, 115 vac, 60HZ
444REV
Motor- 1 Phase 1/2 HP, 115vac, 60HZ
445
Motor- 1 Phase 1/2 HP, 115 volts, 60hz
445REV
Motor- 1 Phase, TEFC 1/2 HP, 115vac, 60HZ
446
446REV
Motor- 1 Phase, Explosion Proof 1/2 HP, 115vac, 60HZ
447
Motor- 1 Phase 1/2 HP, 115 volts, 50hz
447REV
Motor- 1 Phase 1/2 HP, 115vac, 50HZ
448
Motor- 1 Phase 1/2 HP, 230 volts, 60hz
448REV
Motor- 1 Phase 1/2 HP, 230vac, 60HZ
449
Motor- 3 Phase 1/2 HP, 230 volts, 50hz
449REV
Motor- 1 Phase 1/2 HP, 230vac, 50HZ
451
Motor- 3 Phase 1/2 HP 230 volts, 60hz
451REV
Motor, 3 Phase, TEFC 1/2 HP, 230vac, 60HZ
452
Motor- 3 Phase, TEFC 1/2 HP, 300 volts, 60hz
452REV
Motor, 3 Phase 1/2 HP, 460vac, 60HZ
454
Motor- 3 Phase 1/2 HP, 460 volts, 60hz
454REV
Motor, 3 Phase 1/2 HP, 230vac, 60HZ
455
Motor- 1 Phase, TEFC C-FACE 3/4 HP, 115 VAC, 60hz
455REV
Motor- 1 Phase. TEFC 3/4HP, 115vac, 60HZ
456A
Motor- 3 Phase. TEFC C-Face 3/4 HP, 230 vac, 60HZ
456B
Motor- 3 Phase. TEFC C-Face 3/4 HP, 460 vac, 60HZ
456REVA
456REVB
457
A/C Electric Motor 1 HP Motor, 115 volts, 1 PH, 60-cycle, Totally Enclosed, Fan Cooled
Motor- 1 Phase. TEFC C-Face 1 HP, 115 vac, 60HZ
457REV
458A
Motor- 3 Phase. TEFC C-Face 1 HP, 230vac, 60HZ
458B
Motor- 3 Phase. TEFC C-Face 1 HP, 460vac, 60HZ
458REVA
458REVB
459A
Motor- 3 Phase. TEFC C-Face 2 HP, 230vac, 60HZ
459B
Motor- 3 Phase. TEFC C-Face 2 HP, 460 vac, 60HZ
461
Hand Pump, Auxiliary Piston Type
5 strokes per gallon. Equipped with TFE piston cups, operating temperature of -25° to 200°F, dual-action - dispenses on each stroke and self-priming with up to 20 ft. of lift. Hand pump check valve and motor pump check valve included.
461DW
Auxiliary Hand Pump
Piston Type (DW) (Ship Loose)
462
Hand Pump, Rotary
High flow (10 rotations per gallon; 2 per liter). All cast-iron housing with stainless steel shaft & strainer. Malleable iron pump handle with rotating grip for ease of use. Self-adjusting spring-loaded carbon vanes give smooth operation. Internal check valve allows immediate dispensing. Built-in stainless steel strainer. Hand pump check valve and motor pump check valve included.
462DW
Rotary Type DW (Ship Loose)
463
Standard Pump and Motor A couple 2 gpm bronze pump (Option #402) and a 1/3 HP, 120vac, 1 PH, 60 Hz motor (Option #414) purchased separately.
463SB
Pump & Motor 2 GPM Pump- 1/3 HP, 115 vac, 60 HZ Motor
464
Pipe Stem For engine suction and return. (set of two)
464DW
Pipe Stems (Set of Two) Engine Suction & Return Lines (DW)
464SB
Pipe Stems (Set of Two) Engine Suction & Return Lines (Sb)
465
Enclosed Industrial Control Panel
A heavy gauge steel enclosure that meets U/L requirements (Label #508). Only U/L listed components are used within. These components that make up various day tank accessories include: contactors, relays, sockets, lights and switches, even the wire and connectors.
499-3672
Motor- 3 Phase
1HP, 208-230/460vac, 60/50hz 56HC
499-3673
Motor- 3 Phase T.E.F.C.
1HP, 208-230/460vac, 60hz, 1800rpm
499-3684
Motor- 1 Phase, T.E.F.C
2HP, 115/208-230vac, 1ph, 1750 rpm, 58hz, 7/8" Shaft
499-3700
Motor, 3 Phase, Explosion Proof
3HP, 208-230/460, 60/50hz, 182TC-Face
499-3722
Motor- 1 Phase, T.E.F.C.
1/2HP, 110/220vac, 1ph, 50hz, 1500rpm
499-3731
Motor- 3 Phase, T.E.F.C.
7.5HP, 230/460, 60-50hz, 3600rpm, 213T
499-3764
Motor- 1 Phase, Explosion Proof
3/4HP, 24vdc,T.E.N.V., 1750rpm, 56C
499-3782
5HP, 208-230/460vac, 3PH,50/60hz, 1200rpm, 215T
499-3787
7.5HP, 230/460vac, 60/50hz, 1200rpm, 254TC-Face
499-3788
Motor- 3 Phase, Explosion Proof
7.5HP, 230/460vac, 3ph, 50/60hz, 1200rpm,254T
499-3806
1/2HP, 277vac, 1ph, 60hz, 1800rpm,56 Frame
499-3810
7.5hp, 230/460vac, 60/50hz, 1200rpm, 254T
499-3834
Motor
3/4HP
499-3836
2HP, 230/460vac, 3ph, 60hz, 1200rpm, 184T Base
499-3837
800
Evolution PLC System
Tank mounted, Programmable Logic Controller (PLC) based system designed to control and monitor the activities of up to four pumps and motors.
805-32
Memory Module 32k of Memory- Memory Module for program upgrade as necessary
805-64
Memory Module 64k of Memory- Memory Module for program upgrade as necessary
810-485
Communications Module for PLC Communications Module for PLC- Directs Logic Controller output down stream to in-house building management systems. RS485/RS232 (distance rating: RS232-50 feet, RS485-656 feet)
810-WEB
Communications Module for PLC WEB Server Module for remote maintenance
812
Back-Box Converter RS485 to RS232 (used only if customer does not have RS485 connection)
815
Analog Module 4-20 MA output (2 each)
816-1
PLC
Analog Input Module (1)
820-DB9-06
Cables Cable w/DB9 male/female connectors - 6 feet
820-SHL-12
Cables Bulk shielded, low capacity, 4 conductor - 12 feet
827
Duplex Supply System (PLC Controlled) Additional secondary controls, piping and standard 2 gpm pump & 1/3 HP motor "lag" system to back-up primary "lead" pump/motor. Normally the lead pump/motor begins operation at 86% usable fuel capacity; the lag system begins at 82%. Both systems turn off at 100% capacity.
827A
Duplex Supply System with Automatic Lead/Lag Pump Swap (PLC Controlled) Same as Option #827 plus HOA switching capability to automatically alternate each pump/motor into the lead starting position.
827B
Duplex Supply System with Manual Lead/Lag Pump Swap (PLC Controlled) Same as Option #827 plus switching capability to manually alternate each pump/motor into the lead starting position.
830
Software WindSRVâ„¢ for building management system's PC drivers
834
Cover (Day Tank with PLC) NEMA-1 Enclosure for PLC Tank Mounted Systems
834-1
Single Pump and Motor Replaces the single pump/motor cover that is standard equipment for all day tanks.
834-2
Duplex Two pumps, motors and control components. This cover is standard equipment for duplex supply pumps and motors with Options 827, 827A or 827B.
834-3
Triplex Three pumps, motors and control components.
834-4
Quad Four pumps, motors and control components.
835
Weatherproofing for Option #834 Series Covers A NEMA 3R rated enclosure to provide protection against normal weather elements. The control panel viewing area is covered with sealed plexi glass and all openings are piped-through. Inside, a pan provides protection from flooding.
850-W10
Remote Operator Interface (HMI) Color LCD Touch Screen - 10.4" Requires wall mounting box
850-W12
Remote Operator Interface (HMI) Color LCD Touch Screen - 12.1" Requires wall mounting box
870-1616-4
Enclosure, Wall Mount NEMA 4-12 (16" x 16" x 8")
870-1620-1
Enclosure, Wall Mount NEMA 1 (16" x 20" x 8.75")
870-1620-4S
Enclosure, Wall Mount NEMA 4-12 with security window (16" x 20" x 8")
873
Pump Fail Detection With manual reset (requires an inline Flow Switch to detect "no fuel" in fuel line. Option #372)
880
Power Supply Protection Provides surge protection of delicate PLC components high rating capacity, thermal protected.
899-1
PLC Controls and Plumbing (Single) Controls and tank plumbing required for a single reverse flow pump and motor to pump fuel back to main tank.
899-2
PLC Controls and Plumbing (Duplex) Controls and tank plumbing required for two reverse flow pumps and motors to pump fuel back to main tank.
899A
PLC Controls and Plumbing for Duplex Reverse Flow System with Automatic Lead/Lag Pump Swap Same as Option 899-2 with a HOA switch to automatically alternate each pump/motor into the lead starting position.
899B
PLC Controls and Plumbing for Duplex Reverse Flow System with Manual Lead/Lag Pump Swap Same as Option 899-2 with a HOA switch to manually alternate each pump/motor into the lead starting position.
BB01
Battery Box
12" W x 23" L x 12" H (1 - 4D or 1 - 8D); hinged, lockable, weatherproof enclosure with handles
BB02
12" W x 44" L x 12" H (2 - 4D or 2 - 8D); hinged, lockable, weatherproof enclosure with handles
BB04
12" W x 44" L x 12" H with heat panel and thermostat - 100 watt; hinged, lockable, weatherproof enclosure with handles
BB-05
24" W x 44" L x 12" H
BB-HTR-1
Battery Box with Heater
100 watt, 120vac, with thermostat
BF01
Standard Battery Frame
10" x 22" for one Group 4D battery; formed 7-gauge; standard frames are 4" high, painted flat black or industrial color of choice.
BF02
12" x 22" for one Group 8D battery; formed 7-gauge; standard frames are 4" high, painted flat black or industrial color of choice.
BF03
10" x 44" for two Group 4D battery; formed 7-gauge; standard frames are 4" high, painted flat black or industrial color of choice.
BF04
12" x 44" for two Group 8D battery; formed 7-gauge; standard frames are 4" high, painted flat black or industrial color of choice.
BF-05
24" x 44" (4) Group 8D
BFS01
Seismic Battery Frame
BSF02
BSF03
BSF04
P0016
6" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0017
8" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0018
10" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0020
12" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0021
5" Gauge, Fuel Level, Krueger "At-A-Glance: for Non-UL Day Tanks (Measure Stem Only)
P0136
12" Gauge, Fuel Level, Krueger "At-A-Glance: for Non-UL Day Tanks (Measure Stem Only) For PY5-PY10
P0140
6" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0142
8" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0143
10" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0146
10" Gauge, Fuel Level, Rochester (Side View)- U/L for Day Tanks (Measure Stem Only) For PY5-PY10
P0147
22" Gauge, Fuel Level, Rochester (Side view)- U/L for Day Tanks (Measure Stem Only) FOR PY25
P0148
28" Gauge, Fuel Level, Rochester (Side view)- U/L for Day Tanks (Measure Stem Only) FOR PY50
P0346
14" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0347
16" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0348
18" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0349
20" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0350
22" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0351
24" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0352
18" Gauge, Fuel Level, Krueger "At-A-Glance: for Non-UL Day Tanks (Measure Stem Only) For PY15
P0353
24" Gauge, Fuel Level, Krueger "At-A-Glance: for Non-UL Day Tanks (Measure Stem Only) For PY25
P0354
31" Gauge, Fuel Level, Krueger "At-A-Glance: for Non-UL Day Tanks (Measure Stem Only) FOR PY50
P0355
44" Gauge, Fuel Level, Krueger "At-A-Glance: for Non-UL Day Tanks (Measure Stem Only) FOR PY75-PY150
P0356
50" Gauge, Fuel Level, Krueger "At-A-Glance: for Non-UL Day Tanks (Measure Stem Only)
P0357
12" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0359
16" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0360
18" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0361
20" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0362
22" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0363
24" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0364
28" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0365
36" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0366
41" Gauge, Fuel Level, Rochester (Side view)- U/L for Day Tanks (Measure Stem Only) FOR PY75-PY150
P0367
46" Gauge, Fuel Level, Rochester (Side view)- U/L for Day Tanks (Measure Stem Only) FOR PY200-PY1000
P0368
36" Gauge, Fuel Level, Rochester (Side view)- U/L for Day Tanks (Measure Stem Only) FOR PY60
P0369
17" Gauge, Fuel Level, Rochester (Side view)- U/L for Day Tanks (Measure Stem Only) FOR PY15
P0380
7" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
P0986
32" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0987
34" Gauge, Fuel Level, Rochester (Top View)- U/L for Sub-Base Tanks (Measure Stem Only)
P0993
38" Gauge, Fuel Level, Krueger "At-A-Glance: for Non-UL Day Tanks (Measure Stem Only) FOR PY60
P1153
Gauge, Fuel Level, Rochester (top view)- U/L for Sub-Base Tanks (Measure Stem Only)
P1994
46" Gauge, Fuel Level, Krueger "At-A-Glance: for Non-UL Day Tanks (Measure Stem Only) FOR PY200-PY1000
P2864
9" Gauge, Fuel Level, Kelch (For Sub-base tanks - Measure stem only)
PCI03
Pump, Cast Iron
3 gpm, 1/2" ports, requires at least 1/3 HP motor
PCI03 REV DPX
Pump- Cast Iron Duplex Reverse Flow
3GPM- For Duplex Reverse Flow
PCI03 SUP DPX
Pump- Cast Iron Duplex Supply
3GPM- for Duplex Supply
PCI03R REV
Pump- Cast Iron with Pressure Relief Reverse Flow
3GPM Reverse Flow
PCI03R REV DPX
Pump- Cast Iron with Pressure Relief Duplex Reverse Flow
3GPM for Duplex Reverse Flow
PCI03R SUP DPX
Pump- Cast Iron with Pressure Relief for Duplex Supply
3GPM For Duplex Supply
PCI03REV
Pump- Cast Iron Reverse
3GPM- Reverse Flow
PCI06
6 gpm, 1/2" ports, requires at least 1/2 HP motor
PCI06 REV
Pump- Cast Iron Reverse Flow
6GPM - Reverse Flow
PCI06 REV DPX
6GPM- For Duplex Reverse Flow
PCI06 SUP DPX
Pump- Cast Iron for Duplex Supply
6GPM for Duplex Supply
PCI06R REV
Pump- Cast Iron with Pressure Relief with Reverse Flow
6GPM Reverse Flow
PCI06R REV DPX
Pump- Cast Iron with Pressure Relief for Duplex Reverse Flow
6GPM For Duplex Reverse Flow
PCI06R SUP DPX
6GPM For Duplex Supply
PCI13
13 gpm, 1" ports, requires at least 1 HP motor
PCI13 REV
13GPM Reverse Flow
PCI13 REV DPX
Pump- Cast Iron for Duplex Reverse Flow
13GPM For Duplex Reverse Flow
PCI13 SUP DPX
Pump- Cast Iron For Duplex Supply
13GPM for Duplex Supply
PCI13R REV
13GPM- Reverse Flow
PCI13R REV DPX
PCI13R SUP DPX
Pump- Cast Iron with Pressure Relief For Duplex Supply
13GPM For Duplex Supply
PCI15
15 gpm, 1 1/4" ports, requires at least 1 1/2 HP motor
PCI15 REV
15GPM Reverse Flow
PCI15 REV DPX
15GPM For Duplex Reverse Flow
PCI15 SUP DPX
15GPM For Duplex Supply
PCI15R REV
15 GPM, PRESSURE RELIEF WITH REVERSE FLOW
PCI15R REV DPX
15GPM, PRESSURE RELIEF FOR DUPLEX REVERSE FLOW
PCI15R SUP DPX
15GPM, PRESSURE RELIEF FOR DUPLEX SUPPLY
PCI25
25 gpm, 1 1/2" ports, requires at least 3 HP motor
PCI25 REV
25GPM Reverse Flow
PCI25 REV DPX
25GPM for Duplex Reverse Flow
PCI25 SUP DPX
25GPM for Duplex Supply
PCI62
62 gpm, 1 1/2" ports, requires at least 5 HP motor
PCI62 REV
62GPM Reverse Flow
PCI62 REV DPX
62GPM for Duplex Reverse Flow
PCI62 SUP DPX
62GPM for Duplex Supply
QTY:
Comments or Questions?
Add to Quote
